VGA to AV Converter Adapter, VGA Signal to RCA (Composite) Convert NTSC/PAL Switch, 1080P Compatible, Power Supply Cable Included, VGA to AV Converter
VGA to AV Converter Adapter, VGA Signal to RCA (Composite) Convert NTSC/PAL Switch, 1080P Compatible, Power Supply Cable Included, VGA to AV Converter
Pickup available at 12 Electron Close
Usually ready in 2-4 days
Description

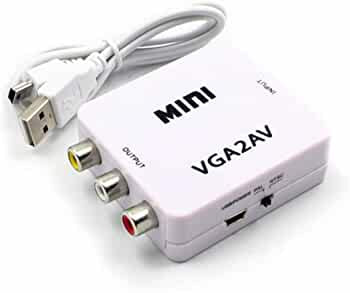

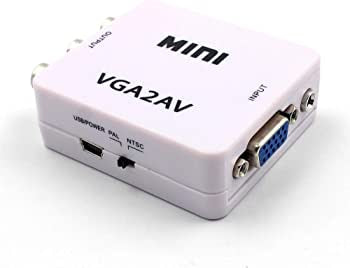

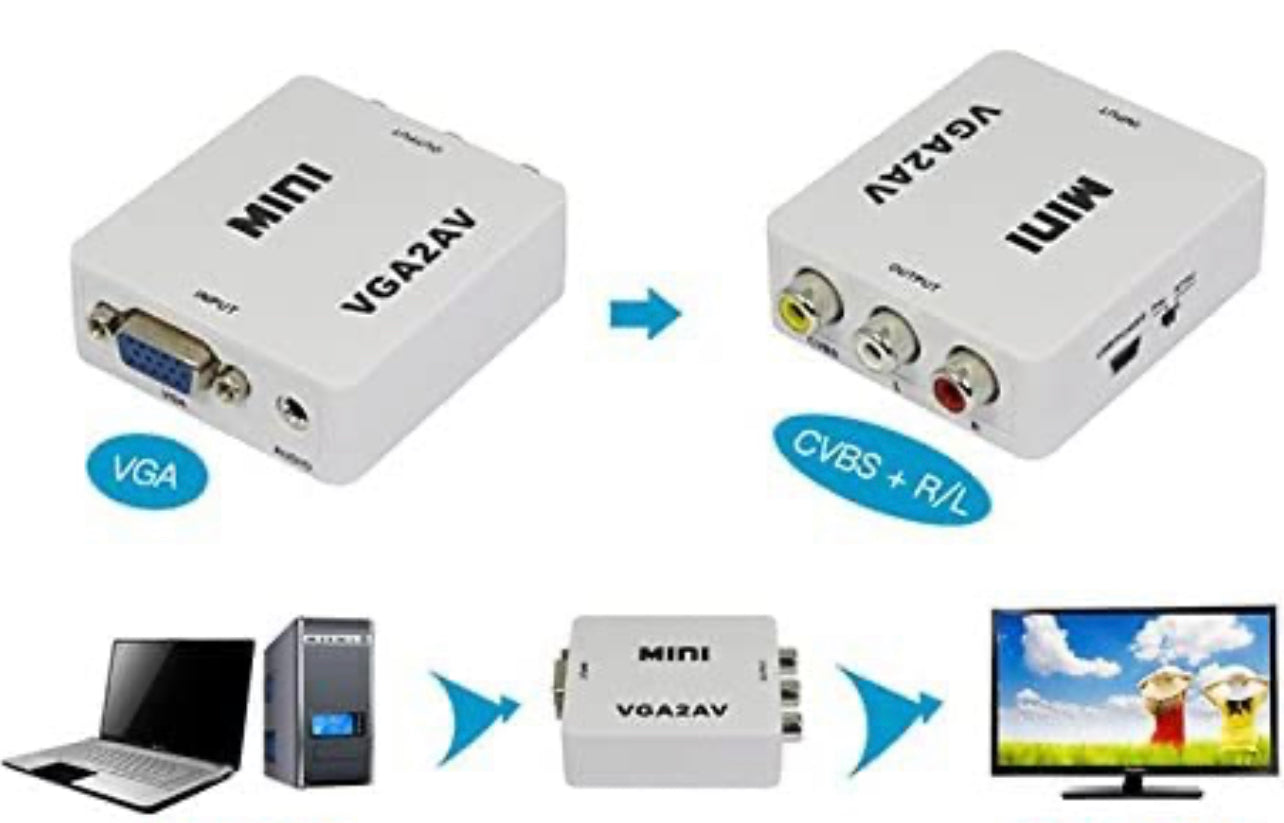

This is a mini converter adapter that can convert the input VGA signal to an AV(RCA) signal.
Supports high resolution up to 1920x1080 Audio input is possible with a 0.1 inch (3.5 mm) mini jack.
USB cable included for power supply.
Specifications:
Color: White
Supported Resolution: Up to 1920 x 1080 60 fps
Frequency bandwidth: 165Mhz

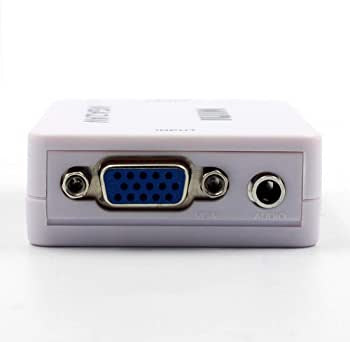

Input terminal: VGA, 0.1 inch (3.5 mm) mini jack
Output terminal: RCA (video/audio R/audio L)

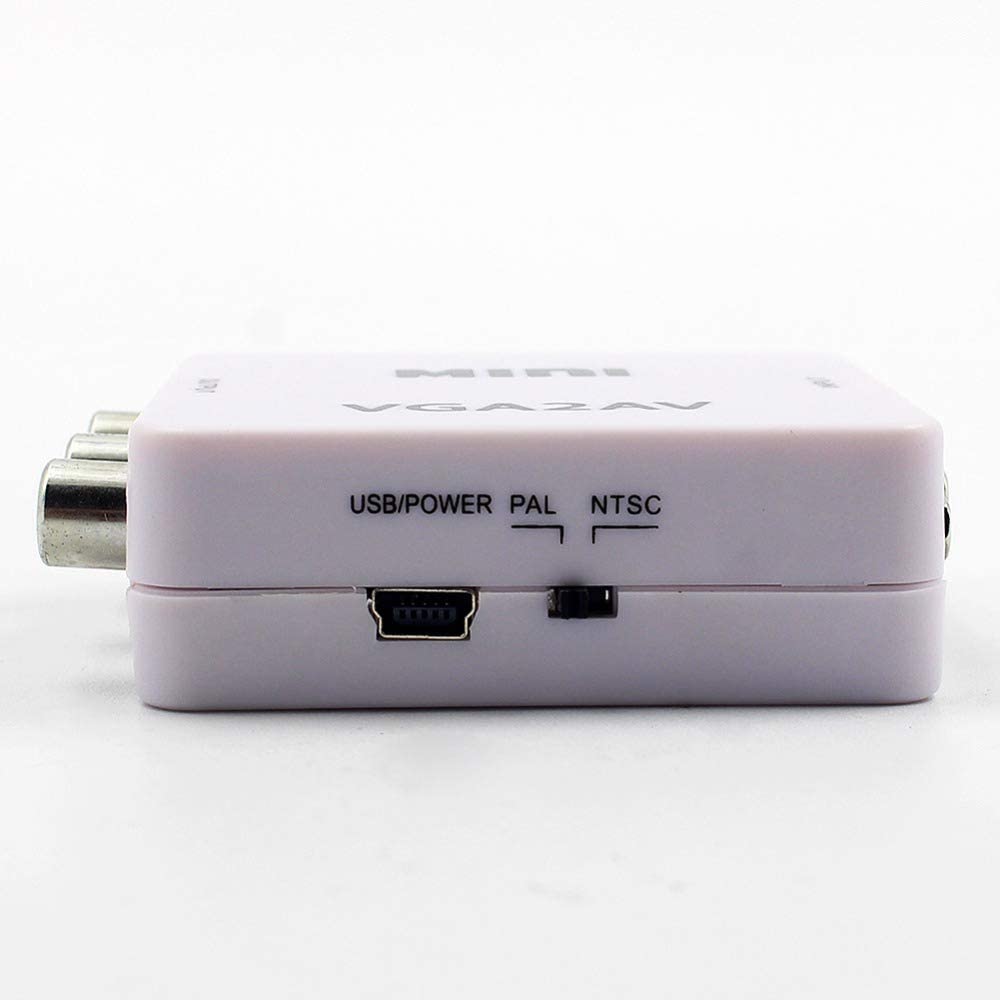

Power supply terminal: Micro USB
Video format: PAL/NTSC (switchable)
Operating Temperature: 0 - 40°
Power consumption: 2.5 W (max)
External dimensions: Approx. 2.6 x 2.2 x 0.8 inches (66 x 55
Weight: 2.8 oz (80 g).
Accessories: USB cable for power supply.
AV (RCA) composite cables are not included. Please prepare them separately.
If you are using audio input and output at the same time, please prepare a separate 3.5mm mini plug cable (AUX cable).
Depending on the device being connected, it may not be compatible, but we cannot answer the details of compatible devices.
Japanese instruction manual not included. We also do not provide support for connection or use.
Depending on the production date, the appearance and specifications may vary slightly. Please acknowledge
