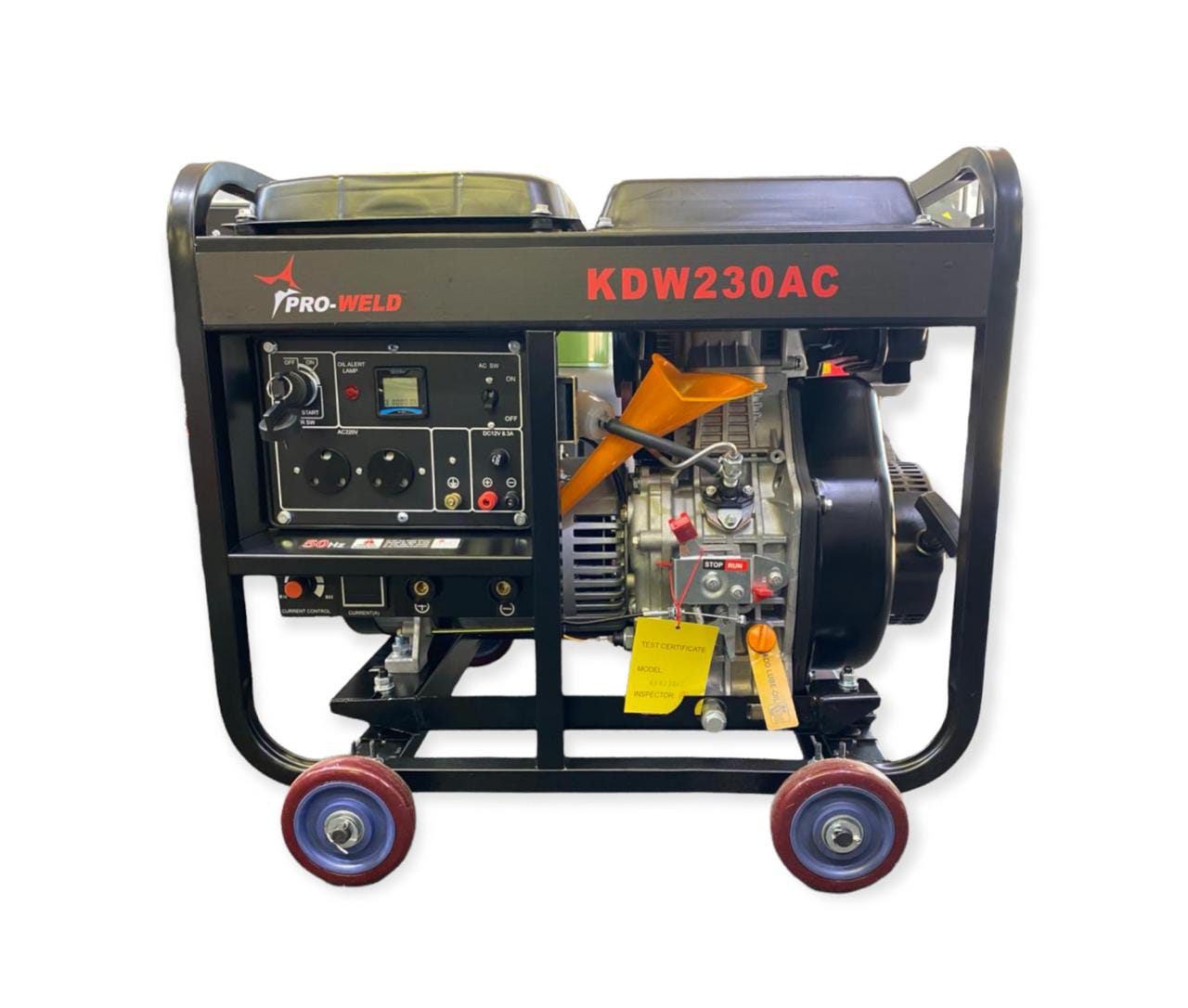

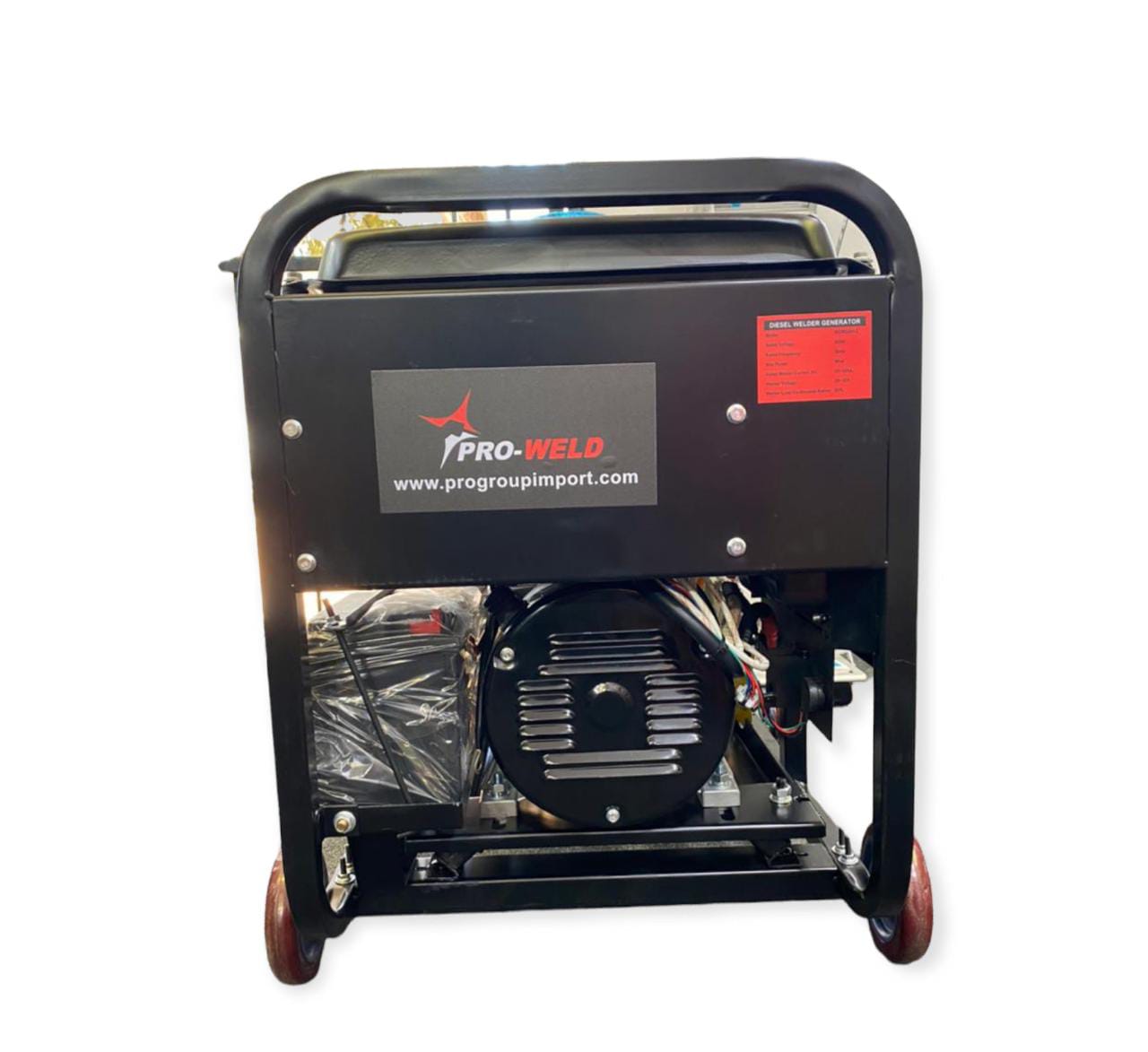

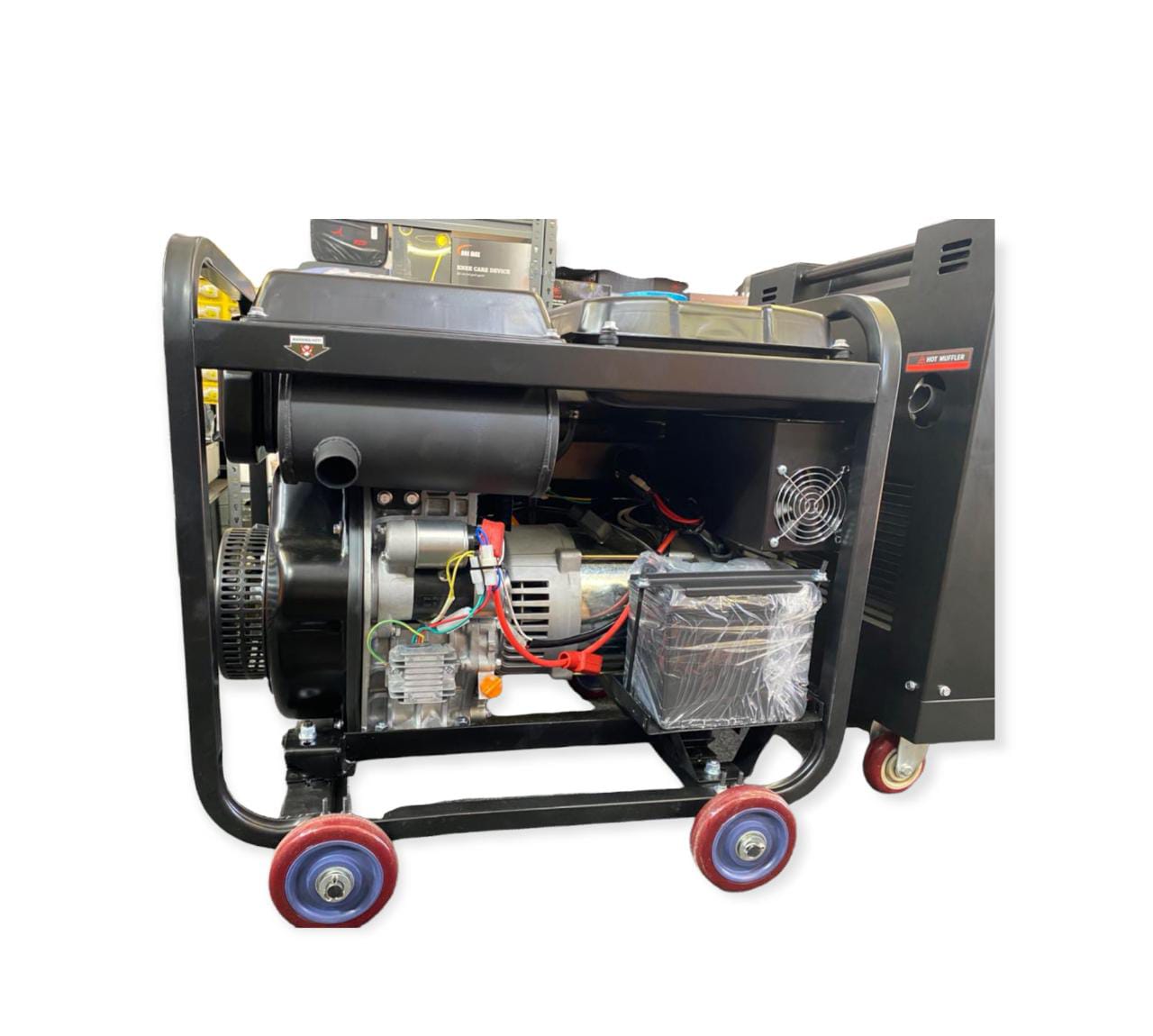

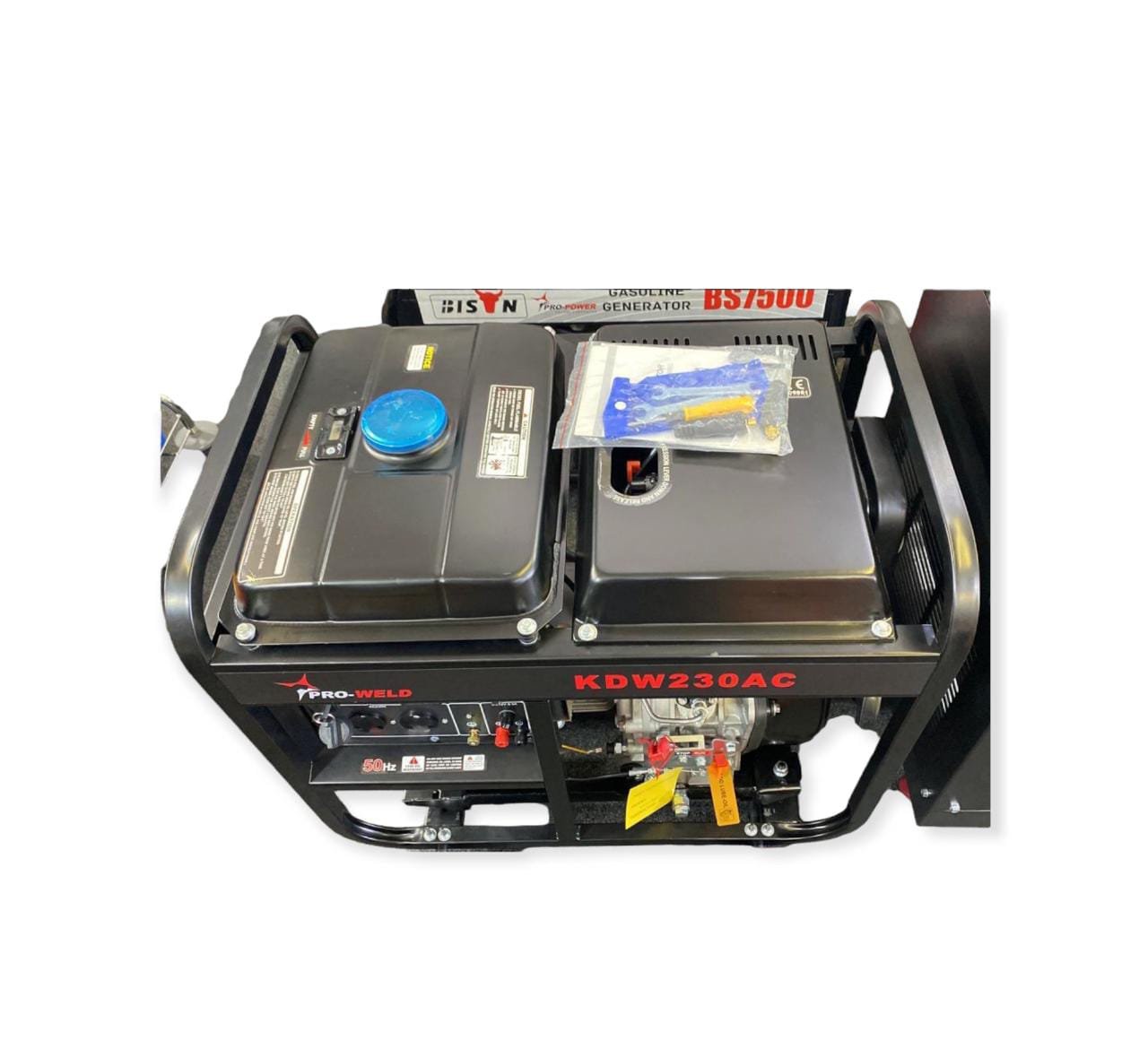

Welder/Generator 200amp

Welder/Generator 200amp

R 29,999.00
R 29,999.00
Sale Sold out
Tax included.

Description

FEATURES:

  • Welder generator type: inverter type-thin sheets can be welded
  • Model:  KDW230AC
  • Power: 6KW
  • Rated voltage: 220V
  • Rated frequency: 50hz
  • Phase number: 1-Phase
  • Power factor: 1.0
  • Work voltage: 25-30V
  • Rated welding current: 200A
  • Current regulation range: 20-220A
  • Welding load continuous ration 85%
  • Insulation grade: H
  • Engine Model: DIESEL 192F
  • Engine type: 1-Cylinder,4 strokes, air cooled diesel engine
  • Broke stroke: 92*75mm
  • Displacement: 499cc
  • Compression ratio: 19.5:1
  • Ration Rotation Speed: 3000rpm
  • Rated power: 7.5kw
  • Starting System: electric start
  • Fuel type: diesel fuel
  • Fuel tank capacity: 12.5L
  • Fuel consumption: ?2.1L/h
  • Lubrication oil: CD Grade or higher (SAE10W/30, SAE15W/40)
  • Lube: 16.5L
  • Wheels: with
  • Welding electrode diameter: 4.0mm
  • Noise level: 83dB (A)
  • Product dimension: 720*500*620mm(L*W*H)
  • Net weight :120kg
