METAL BANDSAW MACHINE 7-INCH
METAL BANDSAW MACHINE 7-INCH
Metal Cutting Band Sawing Machine BS712
1.Vice adjustable for mitre cutting (90° to 45°)
2.Cutting pressure adjustable to each workpiece
3.V-belt allows 4 speed settings
4.Vertical useable for cutting of sheet metal
5.Cast iron saw frame guarantees vibration-free running
6.Includes material fence for efficient work
7.Carriage and transport handle for high mobility
8. Automatic cut-off switch
9. Four wheels for easy machine moving.
10.45º swivel head for easy angle cutting without moving the material

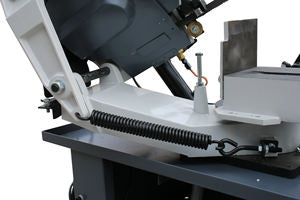

11.Adjustable spring tension screw regulating cutting feed rate
12.Fully-adjustable blade roller for accurate and straight cutting

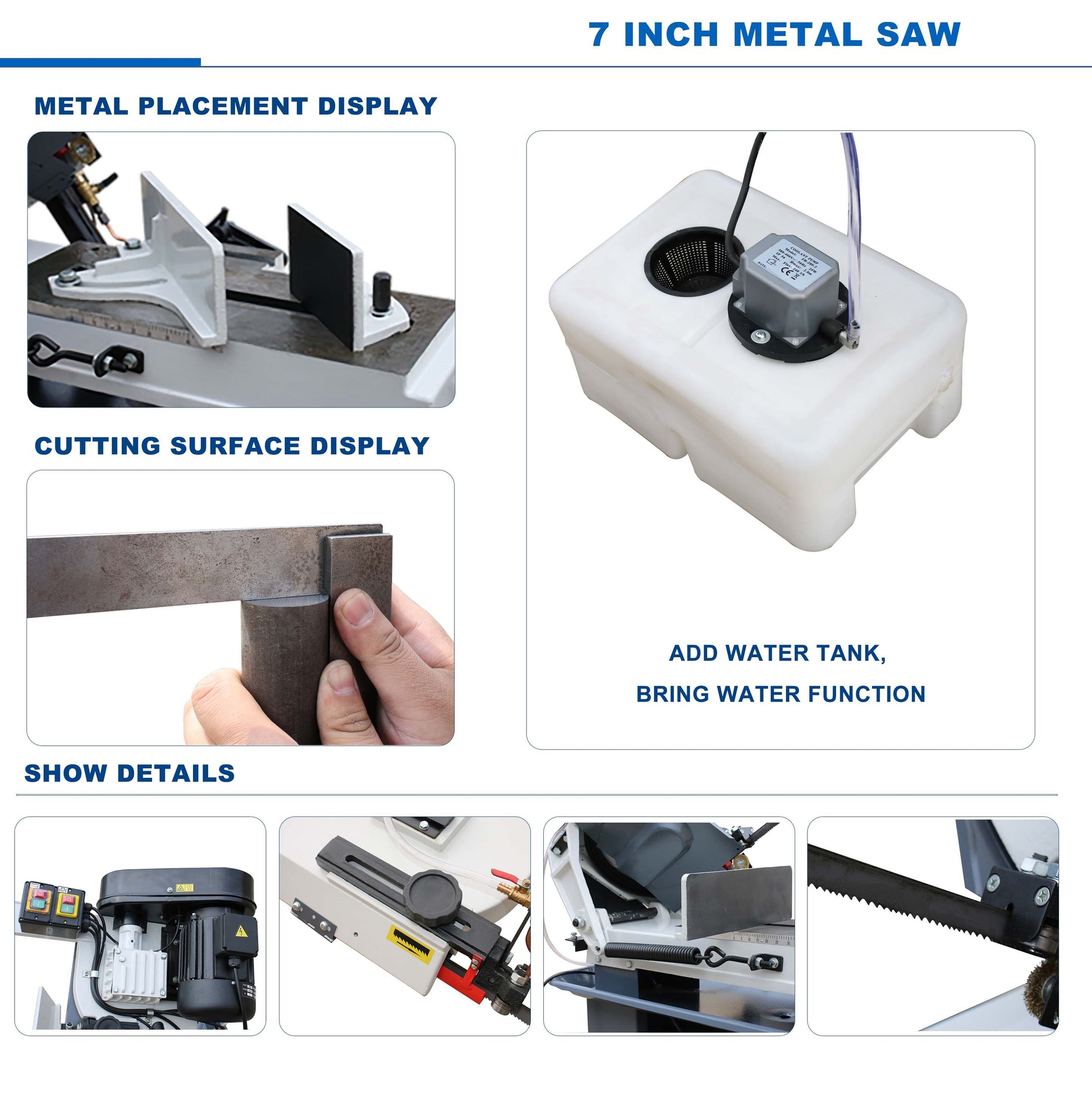

13. Coolant pump for blade cooling.

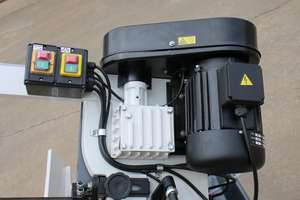

14.Sealed worm and pinion gearbox drive
MODEL |
BS712 |
|
Motor power |
750W 1PH |
|
Blade size |
2360x20x0.9mm |
|
Blade speed(50Hz) |
34,41,59,98m/min |
|
Blade speed(60Hz) |
41,49,69,120m/min |
|
Cutting capacity at 90 degree |
180mm round; 180x300mm flat |
|
Cutting capacity at 45 degree |
110mm round, |
|
110x180 mm flat |
||
Vice tilt |
0~45 degree |
|
N.W./G.W. |
140/170 kgs |
|
Packing size |
1260x460x1080mm |
|
|
