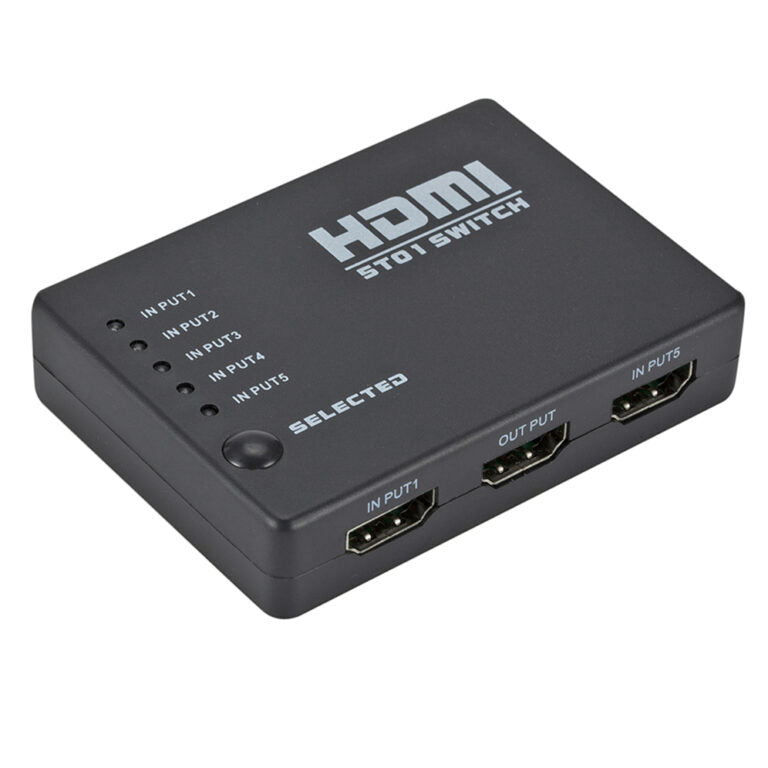

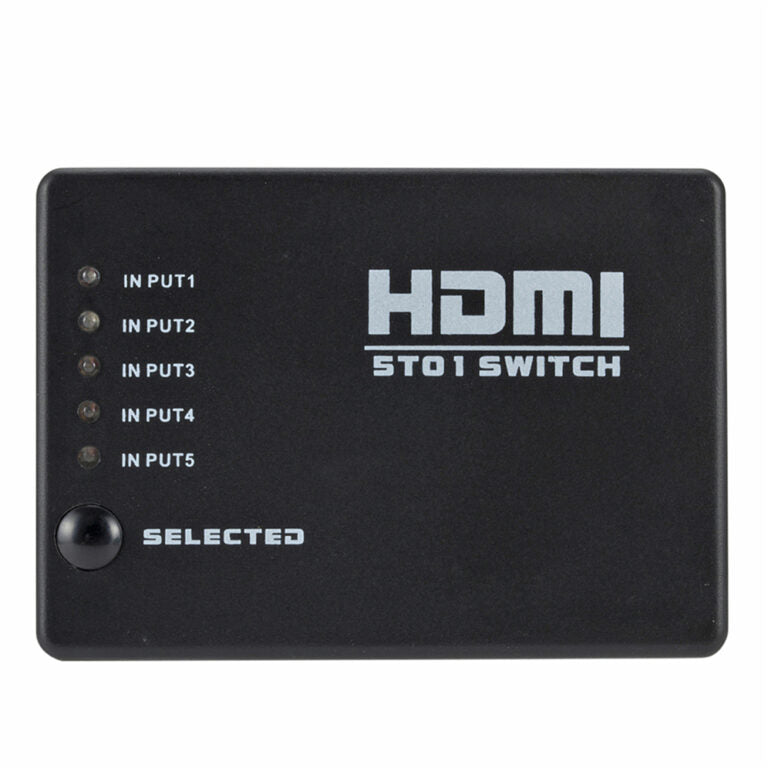

5 In 1 HDMI Switch 1080P With IR Remote Control For HDTV DVD

High performance mini HDMI Switcher, which has not only key-press-switching function, but also has remote control and intelligent switching function, widely compatible with HD-DVD, SKY-STB, PS3, Xbox 360 etc.

Supports high resolution up to 1080P
Support HDMI 250MHz bandwidth, 2.5Gbps data bandwidth per channel (7.5Gbps for all channels)
Support 12-bit deep color (36-bit deep color for all channels)
Support uncompressed audio such as LPCM
Support compressed audio signal transmission such as DTS Digital, Dolby Digital
HDCP pass-through

Specification:

-Input Video Signal: 0.5-1.0V p-p
-Input DDC Signal: 5V p-p (TTL)
-Maximum Single Link Range: 1080P
-Output Video Signal: HDMI1.3b+HDCP1.0/1.1
–Field Frequency: 50/60Hz
-Video Amplifier Bandwidth: 2.5Gbps/250MHz
-Supported Resolution:
-Interlaced (50/60HZ): 480i, 576i, 1080i
-Progressive (50/60HZ): 480p, 576p, 720p, 1080p
-AV Input Port: 5xHDMI
-AV Output Port: 1xHDMI
-Multiple switching modes: smart, manual, remote control
-Product Size: 80x58x18mm

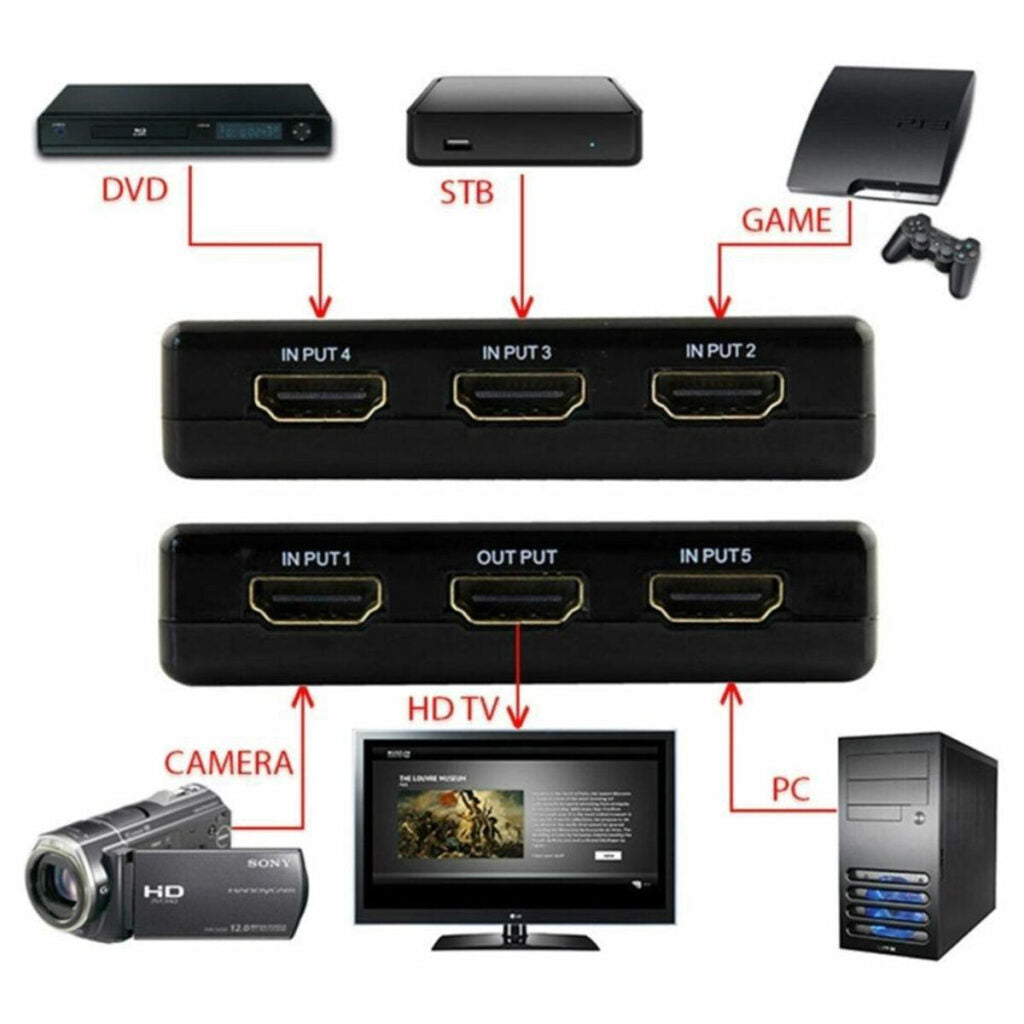

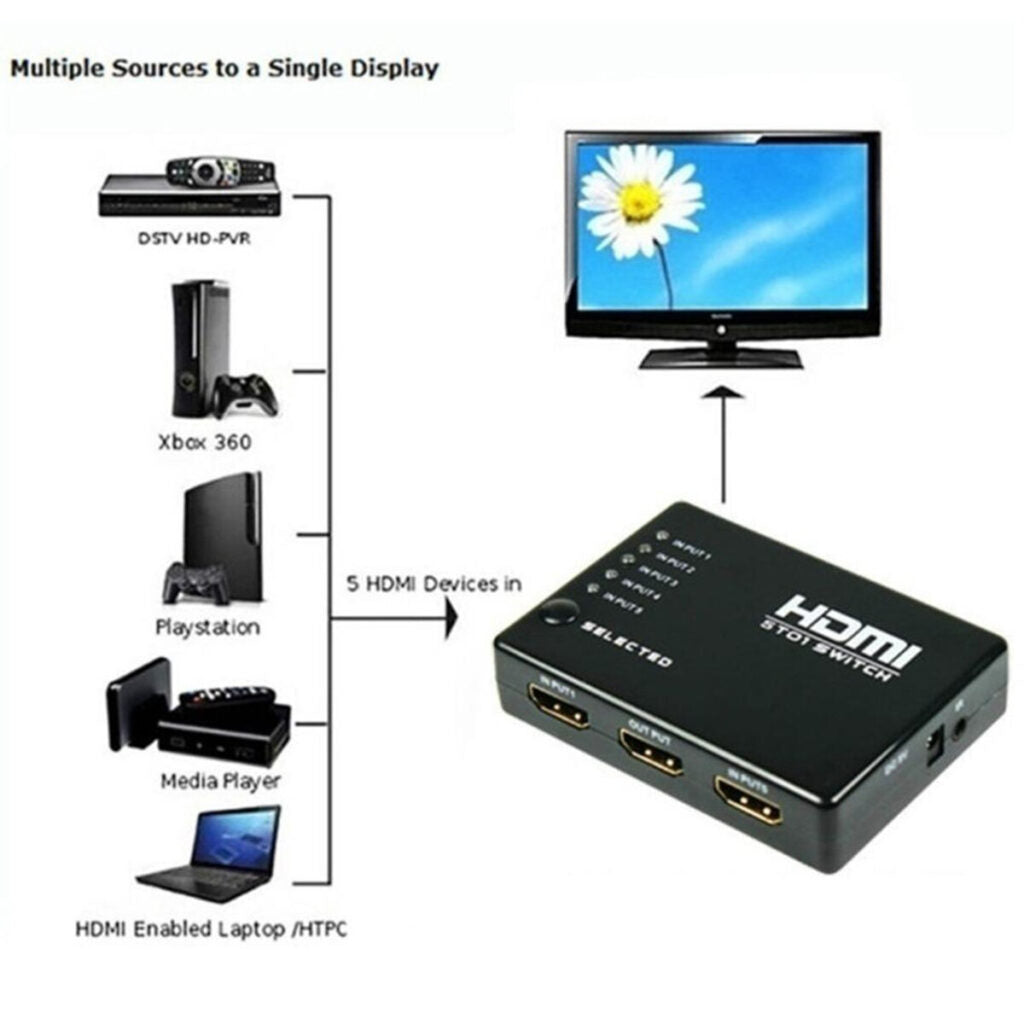

Connection:
Connect the input port of switch to the HDMI signal source via HDMI cable.
Connect the output port of switch to the HDMI display device via HDMI cable.
Use the IR remote control to control the switcher to freely switch between five sources

Package Weight:10g

Package Dimensions:19cm x 11.5cm x 21cm

Package Includes:

1 x HDMI Switcher
1 x Remote Control
