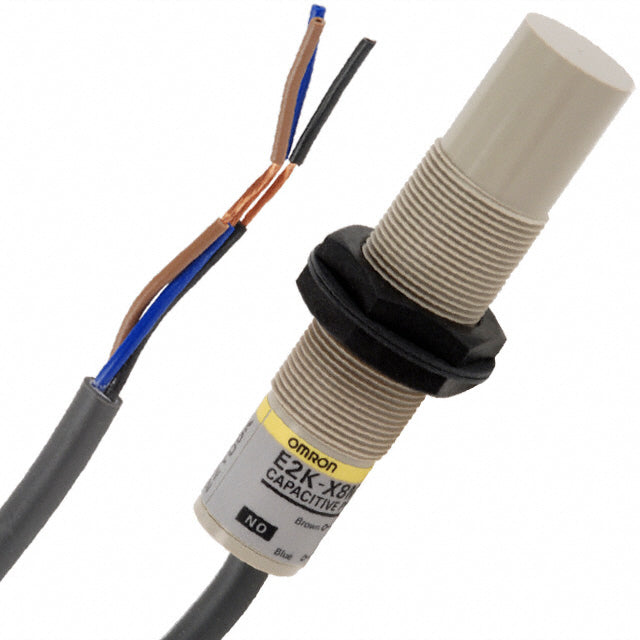

Capacitive Barrel Proximity Sensor, M18, 8 mm Detection, NPN NO, 10 → 30 V dc
Capacitive Barrel Proximity Sensor, M18, 8 mm Detection, NPN NO, 10 → 30 V dc
Regular price
R 3,499.00
Regular price
R 3,999.00
Sale price
R 3,499.00
Unit price
per
Tax included.
Couldn't load pickup availability
General Purpose Capacitive Sensors
The E2K-X series of threaded capacitive sensors permit non-contact detection of metallic and non-metallic objects such as glass, wood, water, oil and plastic.
Fixed sensing distance requires no sensitivity adjustment
Heat-resistant ABS resin casing
LED indication
Rated to IP66
Heat-resistant ABS resin casing
LED indication
Rated to IP66
| Thread Size | M18 |
| Sensor Technology | Capacitive |
| Body Style | Barrel |
| Detection Range | 8 mm |
| Output Function | NO |
| Digital Switching Output Type | NPN |
| Connection Type | Pre-Cabled |
| Cable Length | 2m |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP66 |
| Length | 80mm |
| Mounting Type | Non-Flush |
| Housing Material | ABS |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Switching Frequency | 100 Hz |
| Switching Current | 200 mA |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 100Hz |
| Maximum Operating Temperature | +70°C |
