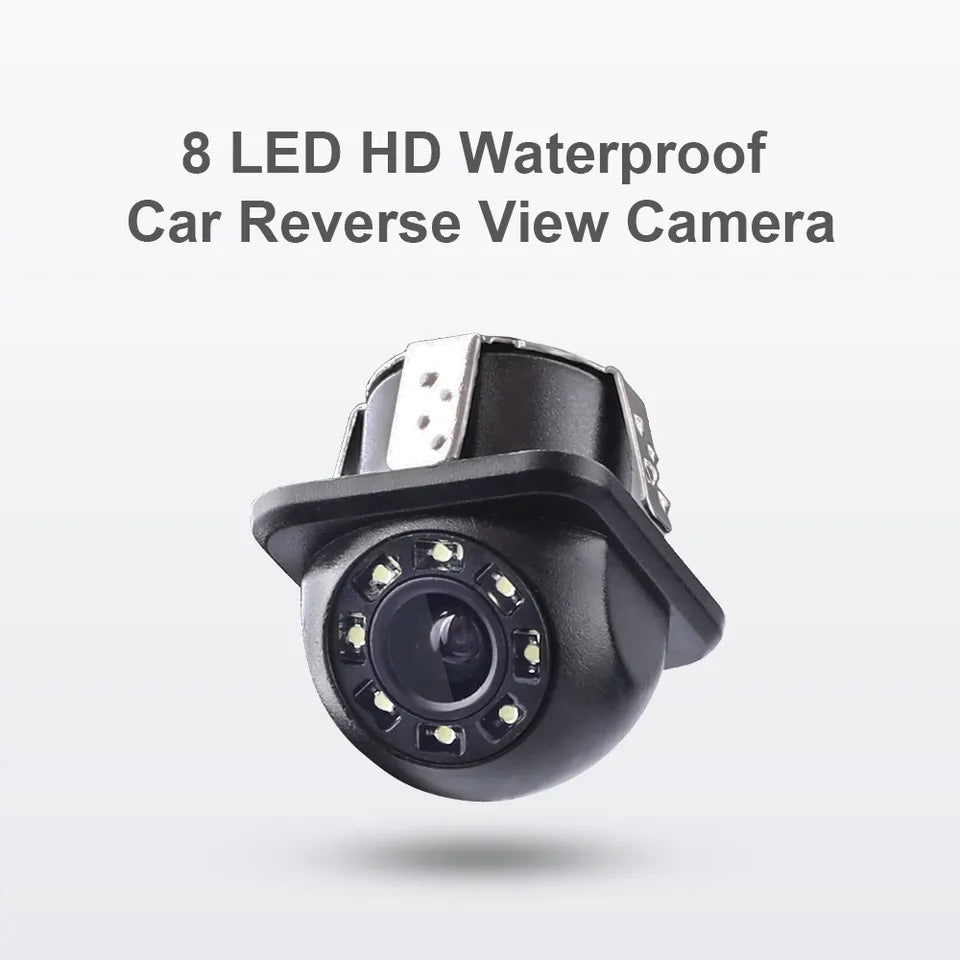

Car Rear View Backup Waterproof Reverse Camera 170° CMOS 8 LED HD Night Vision

Features

HD night vision.

Anti fog glass, CMOS imaging sensor

Compatible with DVD automobile navigation

170 degree wide angle, find the potential reverse in reality, such as a kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.

With CCD core, the video and picture will be more clear

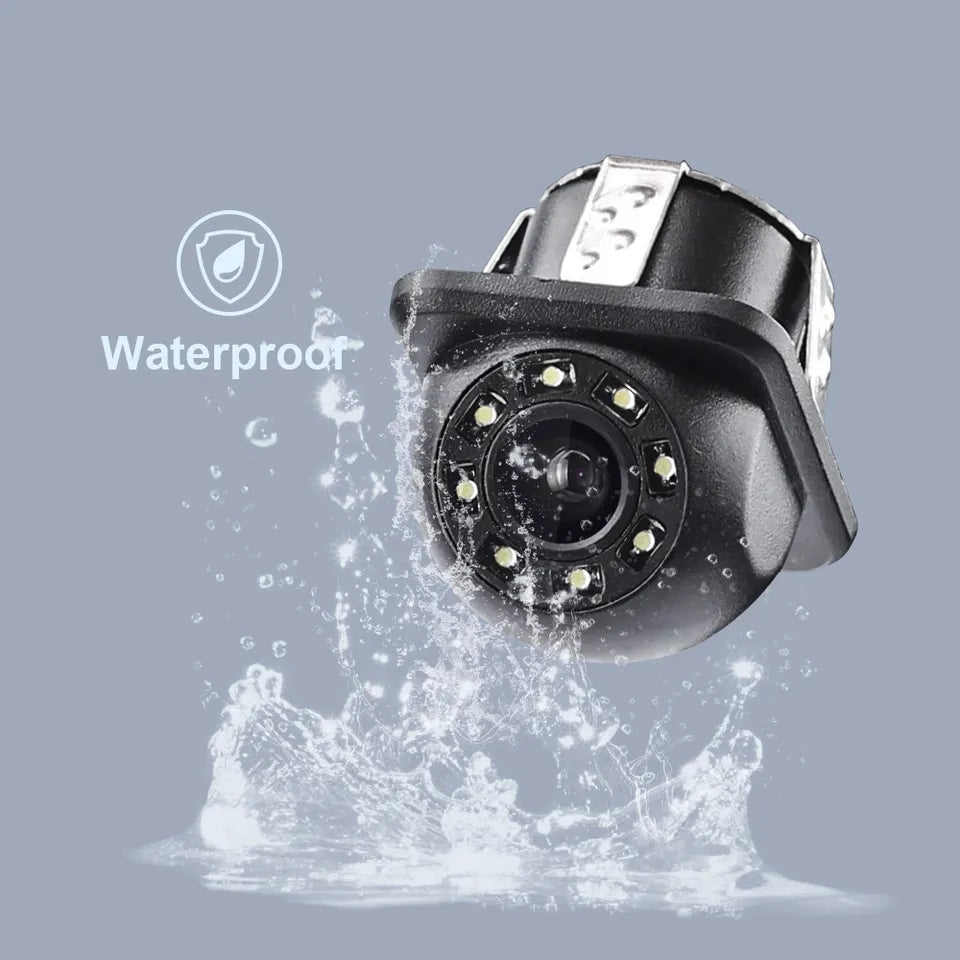

Waterproof, shockproof and dust proof

Drill Hole Style Car HD Rear View Camera, gives you a full sight of the back of your car when you are driving

Support NTSC/PAL video system

Applicable to variety of vehicles: car, truck, RV, etc.

Can connect to any type of monitor with a composite yellow RCA jack

Specifications

Image Sensors: PC1030 1/4 Inch Color CMOS

Sensor Area: 4.08 x 3.12mm

Sensor: CVBS / AHD

Operating Voltage: DC12V or 24V

Working current: 0.1A ~ 0.3A

Video cable length: Approx. 6 m/ 236.2 inch

Power supply cable length: Approx. 1.2m/ 47.2 inch

Drill Hole Diameter: Approx. 18.5mm/0.73 inch

Camera Dimension: Approx. 25*21*18.5mm/0.98*0.83*0.73 inch

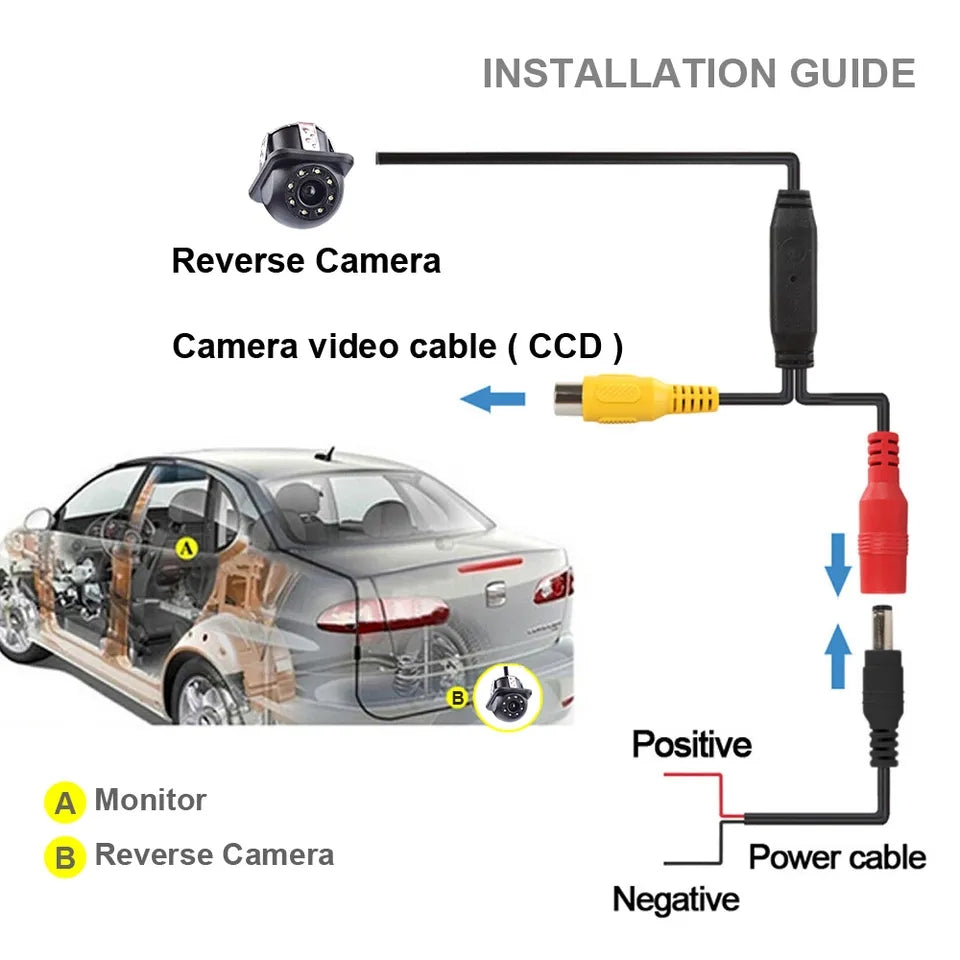

How to install ?

1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)

2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

3.Connect the video cable of the camera to the extension cord.

4.Connect the extension cable to the car monitor.

5.You will see the images when your car is in reverse shift.

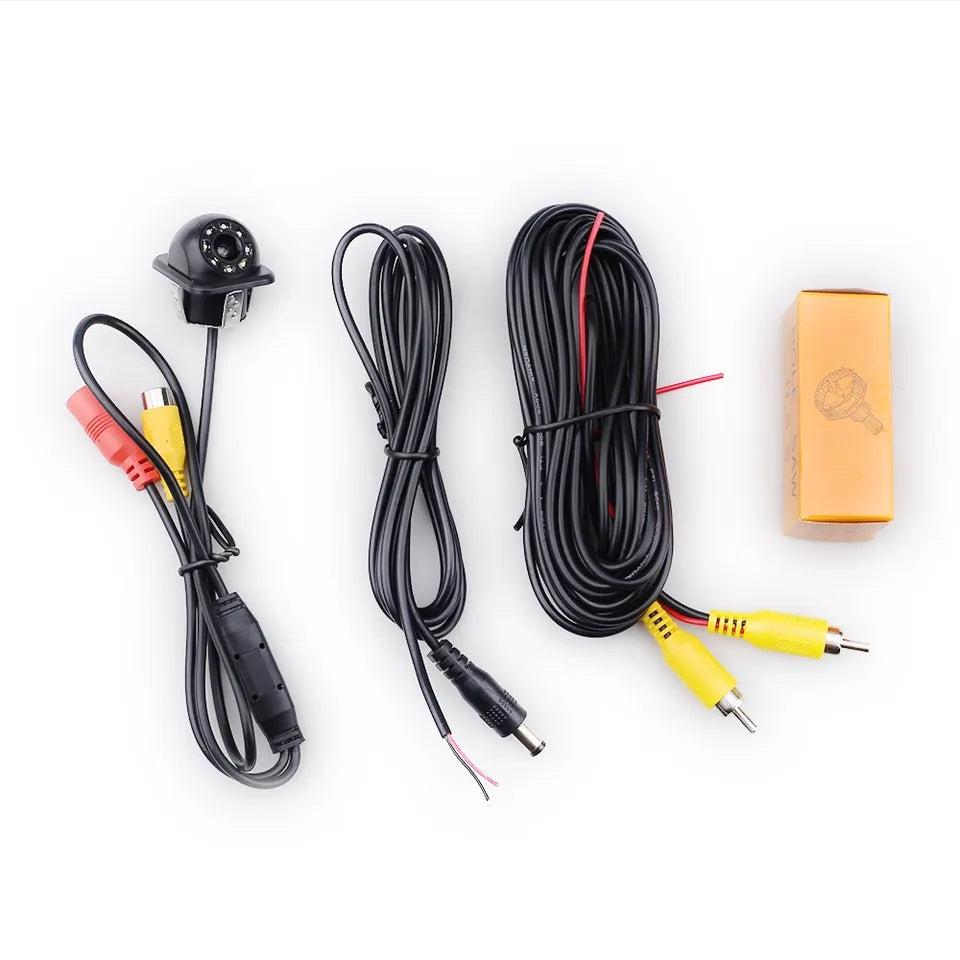

Package Included

One (1) 8 LED round back up camera

One (1) Video cable

One (1) Power cable

One (1) Hole saw
