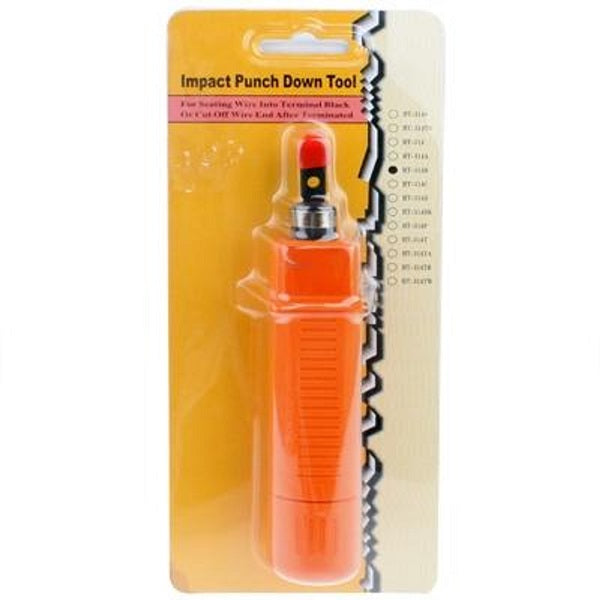

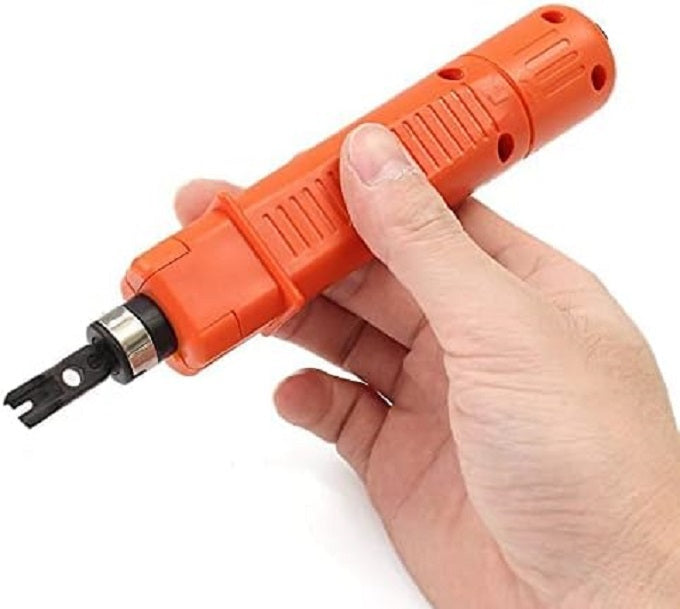

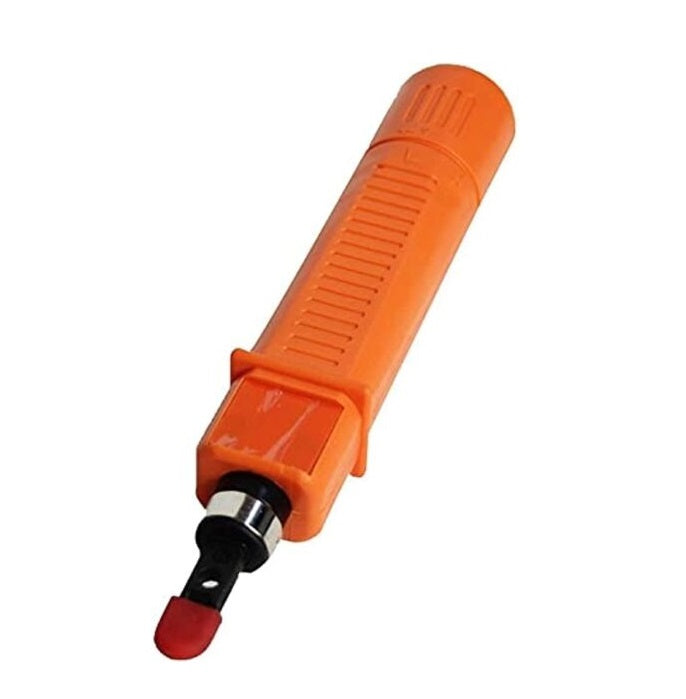

Compact Punch Down Tool Wire Stripper 314B

-For termination of telephone and high-speed network data cables -IDC 110/88 terminal punch down tool with adjustable impact pressure control. T568A and B compliant, 110 type IDC punch down connectors

-Twist handle end to H or L to adjust pressure. Rugged frame with storage compartment in the body of the tool for storing one blade

-Reversible blade for either punching down and cutting or just punching down

-For seating wire into terminal block or cut off wire end after terminated

-For 110 type IDC punch down connectors

-The Impact Punch Down Tool frame is divide into main body with impact mechanism inside and a turntable body

-With adjustable impact pressure control, turn the turntable part in clockwise direction to H indicated pressured H = 15 ± 2kgs for inserting larger wire into terminal block, or L indicated pressure L=10 ± 2kgs for standard wire. The turntable part is irreversible

-Regulated force (L=10kG, H=15kg

Package Weight:153g

Package Dimension: 9cm x 3cm x 24cm

Package Includes

1 x Impact Punch Down Tool
