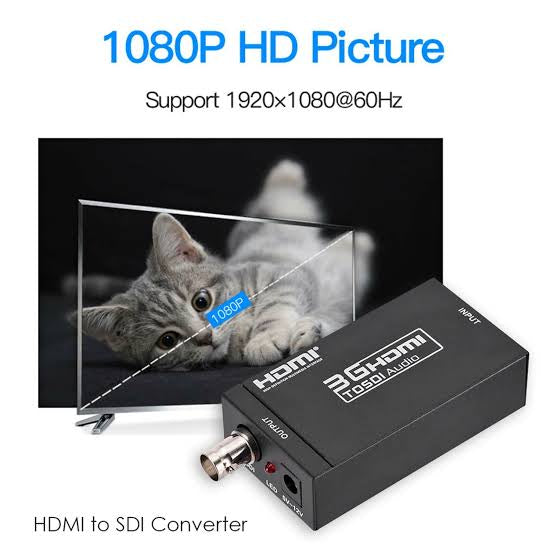

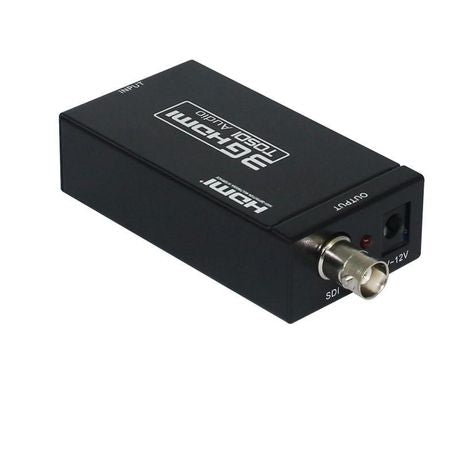

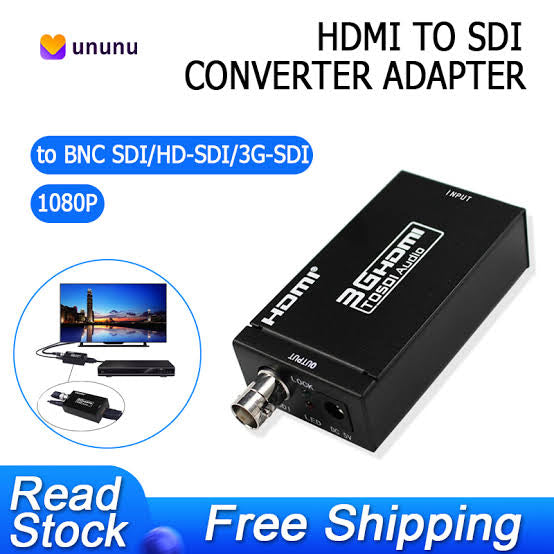

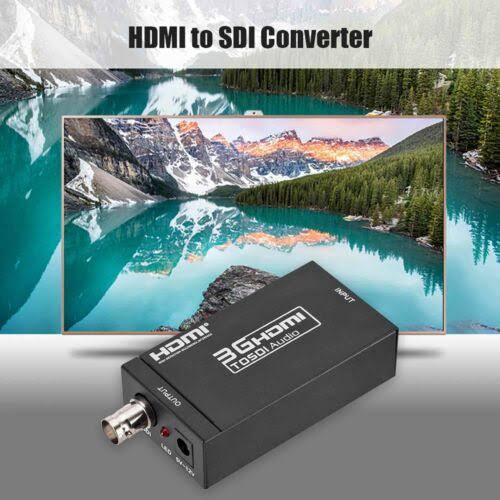

HDMI - to SDI Converter Box Monitor HDTV 1080P BNC Video Audio Adapter

Shows SDI source on HDMI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
Supports SDI input timings: 480i 59.94, 576i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Specifications:
Input Port: 1 x HDMI
Output Port: 1 x SDI (SDI/HD-SDI/3G-SDI)
SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution: 480i, 576i, 720p 50/59.94,60 ,1080i 50/59.94/60 1080p 23.97/24/25/29.97/30/50/59.94/60
Power Supply: DC 5V -12V
ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension: 80mm x 41mm x 25 mm
Weight: 150g
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption (Max):5W

What's in the box
1 x Mini 3G SDI to HDMI converter
