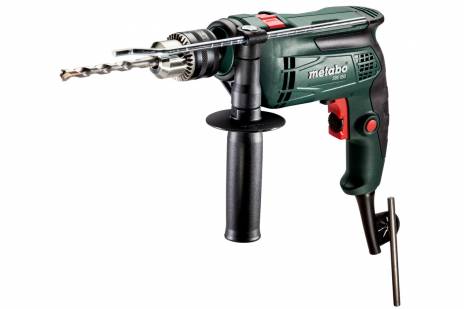

Metabo SBE 650 Impact Drill

• Vario (V)-Electronics for working at customized speeds to suit various application materials
• Thumbwheel for Speed Preselection
• Forward and reverse rotation
• Spindle with hexagonal recess for screwdriver bits for working without chuck

Characteristics

Rated input power: 650 W

Output power: 320 W

Maximum torque: 9 Nm

Drill-Ø masonry: 16 mm

Drill-Ø concrete: 14 mm

Drill Ø steel: 13 mm

Drill-Ø soft wood: 30 mm

No-load speed: 0 – 2800 rpm

Revolutions at rated load: 1500 rpm

Maximum impact rate: 44800 bpm

Gears: 1

Chuck capacity: 1.5 – 13 mm

Collar diameter: 43 mm

Drill spindle with hexagonal recess: 6.35 mm

Drill spindle thread: 1/2 ” – 20 UNF

Chuck clamping type: Geared Chucks

Weight (without power cable): 1.8 kg

Cable length: 2.5 m

Vibration

Drilling in metal: 5.8 m/s²

Uncertainty of measurement K: 1.5 m/s²

Impact drilling concrete: 24.4 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 91 dB(A)

Sound power level (LwA): 102 dB(A)

Uncertainty of measurement K: 3 dB(A)

Scope of delivery

Geared Chucks

Chuck keys

Side handle

Drilling depth guide
